📘Question

A series LCR circuit is subjected to an AC signal of 200 V, 50 Hz. If the voltage across the inductor (L = 10 mH) is 31.4 V, then the current in this circuit is ________ :

(1) 68 A

(2) 63 A

(3) 10 A

(4) 10 mA    (JEE-2024)

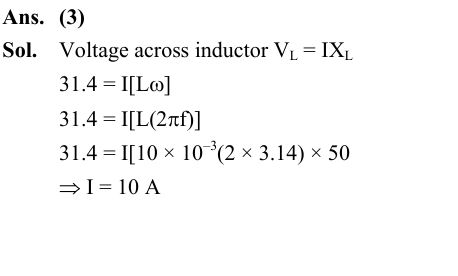

✅ Answer

A series LCR circuit is subjected to an AC signal of 200 V, 50 Hz. If the voltage across the inductor (L = 10 mH) is 31.4 V, then the current in this circuit is ________ :  (1) 68 A  (2) 63 A  (3) 10 A  (4) 10 mA
